उत्पाद विवरण:
|
| उत्पाद का प्रकार: | पीपी पैकिंग बेल्ट एक्सट्रूज़न लाइन | कच्चा माल: | पॉलीप्रोपाइलीन पीपी कच्चे माल छर्रों, पुनर्नवीनीकरण छर्रों |
|---|---|---|---|
| पेंच डिजाइन: | 1 से 2, 3, 4 | प्रसंस्करण प्रकार: | बाहर निकालना मशीन |
| क्षमता: | 130-600 किग्रा/घंटा | शक्ति: | 100 किलोवाट |
| प्रेरित प्रकार: | इलेक्ट्रिक | आवेदन: | पैकेजिंग पट्टा |
| स्वचालन: | स्वचालित | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | 4 PP Strapping Band Making Machine,PP Strapping Band Making Machine 130kg/H,130kg/H pp strap production line |
||

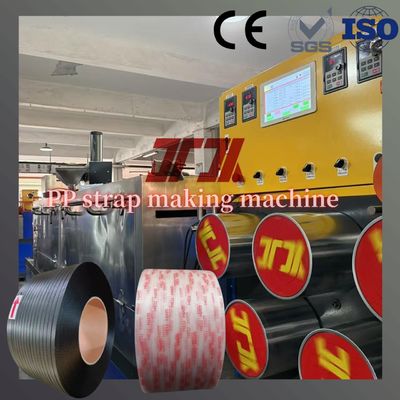

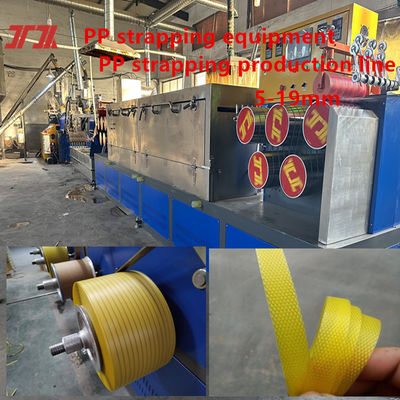

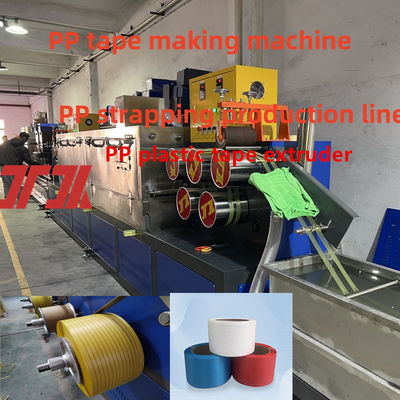

PP strapping tape production line Twin screw sandwich PP strapping tape equipment Servo winding machine
PRODUCT DESCRIPTION OF PP STRAPPING PRODUCTION LING
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.5-1.5mm
Production capacity: 130kg/h
Installation size: L38*W2.0*H4.0(m)
Raw materials------
PP strapping equipment can produce plastic raw materials:
recycled materials or new materials to produce strapping;
EXTRUSION PARAMETERS TABLE
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |

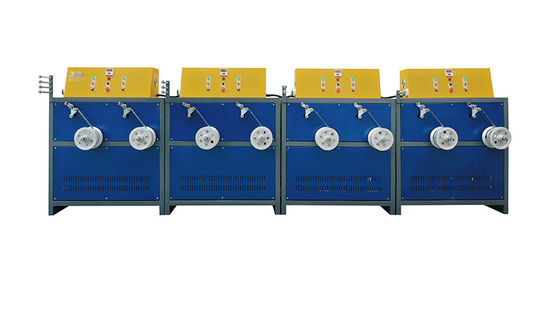

| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Advantage:
1.Use 100% Recycled PET Flakes to reduce the cost
2.Good dehumidifer drying system(Crystallization system optional) to ensure the material equal dryer to produce high quality
strapping
3.Special design hot forming tensile tank to make good forming ,equal width,straight strap
Features of PP strapping production line:
1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;
2. It can be used to directly produce manual packing belts;
3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;
4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;
5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.
