उत्पाद विवरण:
|
| उत्पाद का प्रकार: | पीईटी स्ट्रैप बनाने की मशीन | कच्चा माल: | पीईटी फ्लेक्स या 100% पुनर्नवीनीकरण सामग्री |
|---|---|---|---|
| पालतू जानवर का पट्टा चौड़ाई: | 9-32 मिमी | क्षमता: | 200 किग्रा/घंटा |
| पीईटी मोटाई रेंज: | 0.6-12मिमी | प्रेरित प्रकार: | इलेक्ट्रिक |
| वोल्टेज: | ग्राहक के कारखाने के अनुसार | उत्पाद का रंग: | हरा/गुलाबी/पीला/काला |
| मोटर: | गुगाओ | बिक्री के बाद सेवा प्रदान की गई: | वीडियो तकनीकी सहायता, ऑनलाइन सहायता |
| आवेदन: | पैकेज्ड सामग्री | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | 12mm PET Strapping Extrusion Line,GUGAO Motor PET Strapping Extrusion Line,Plastic Strap Packing Machine 250KW |
||
PET Strapping Extrusion Line PET Machine Plastic Strap Packing Machine
Quick Detail Of PP Strap Making Machine
Name: PET 1 to 6 strapping production line
Applicable raw materials: PET raw material or 100% PET bottle flakes recycled
Number of screws: 1 Screw
Number of extruded belts: 1, 2, 4, 6
Width range: 9-32mm
Thickness range: 0.6-12mm
Production capacity: 200kg/h 250kg/h 350kg/h
Installation size: 35m*(3~6)m*(4~6)m or 45m*(3~6)m*(4~6)m
Specification Of PET Strap Production Line
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity |
PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |

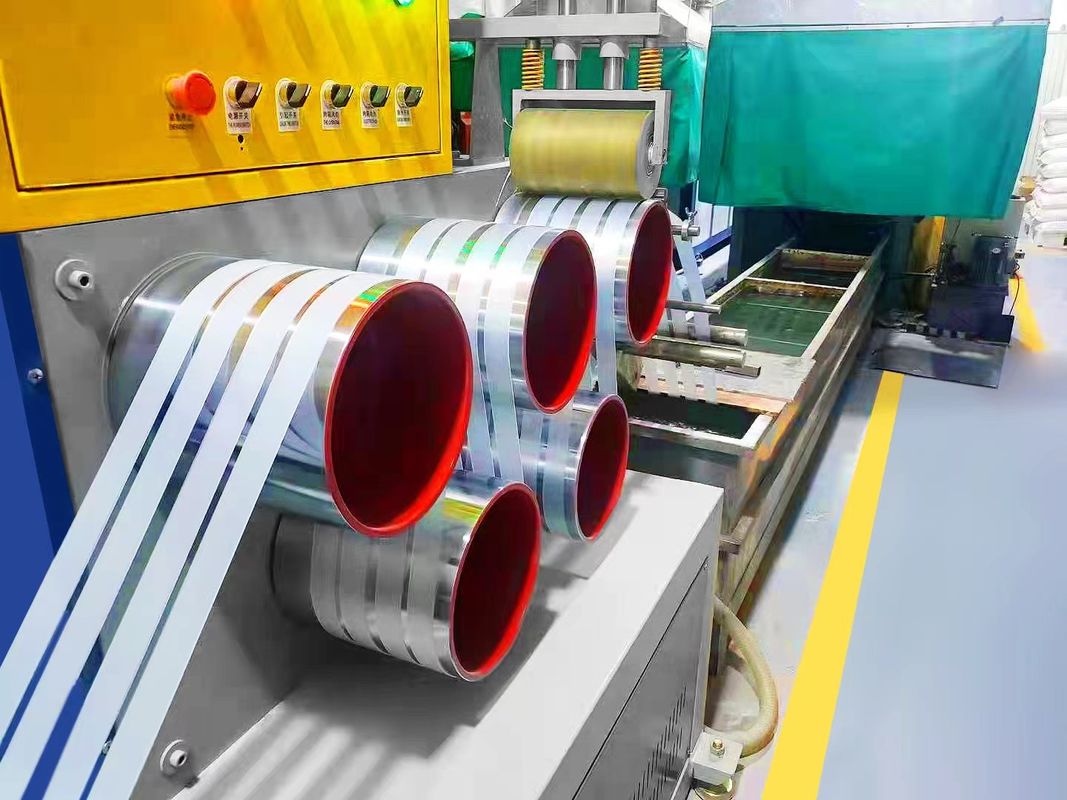

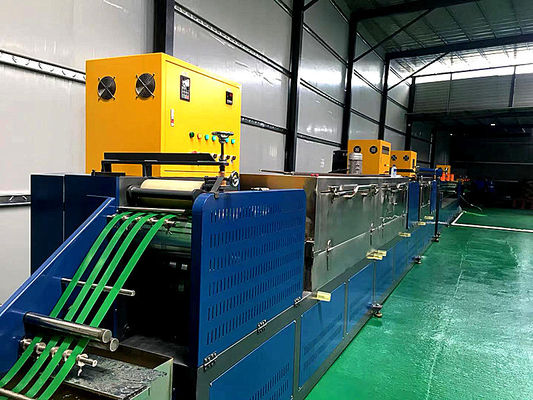

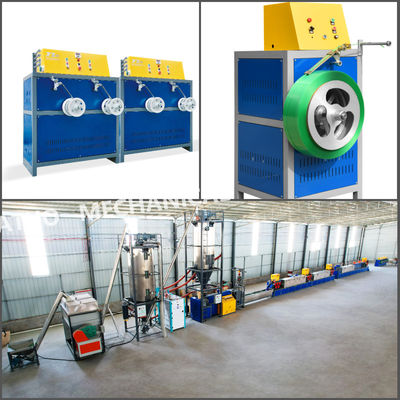

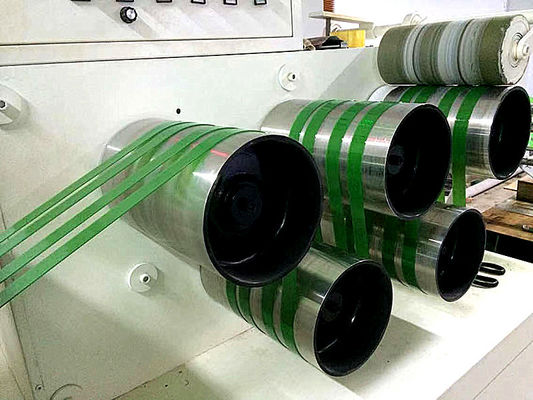

Overall picture of PET Strapping Machine
![]()
More information about PET strapping extrusion production line

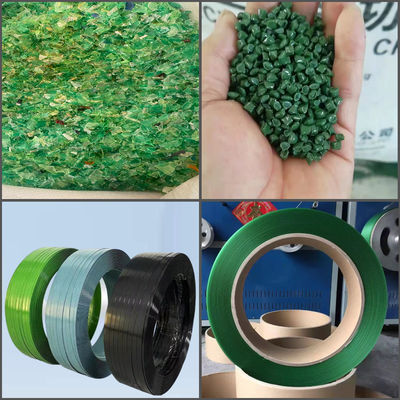

PET strap making machines with 1, 2 or 4 straps extruded are available. final straps from 100% PET bottle flakes exhibit high tensile strength, the resistance to splitting.
With over 10 years experience in transforming recycled raw materials into a consistent quality PET strap by supplying manufacturing facilities for extruding, stretching, stabilizing and collecting processes.
the straps have excellent characteristics such as dimensional stability (width & thickness), weight, camber, breaking loads, elongations under load, weldability and service life. High performance PET straps produced on our PET strap machinery are replacing steel straps at significant savings.
![]()
Features of PET packing strap production line:
![]()
