उत्पाद विवरण:
|
| प्लास्टिक संसाधित: | पीपी | पेंच व्यास (मिमी): | 110 मिमी |
|---|---|---|---|
| उत्पादन क्षमता: | 240-280 किग्रा/एच | गारंटी: | 1 वर्ष |
| एक्सट्रूडेड स्ट्रैप की संख्या: | 4 | आवेदन का दायरा: | कुछ हल्के माल (>240 किलोग्राम) |
| स्क्रीन परिवर्तक: | स्वचालित/संभाल | मोटाई सीमा: | 0.4-1.2मिमी |
| चौड़ाई सीमा: | 5-19मिमी | लागू कच्चे माल: | 100% पुनर्नवीनीकरण सामग्री |
| गलनांक: | 260 तापमान | कीवर्ड: | पट्टा बनाने की मशीन |
| प्रमुख विक्रय बिंदु: | उच्च उत्पादकता | स्वचालित ग्रेड: | पूरी तरह से स्वचालित/अर्ध स्वचालित |
| मोटर शक्ति: | गुगाओ | रंग: | अनुकूलन |
| प्रमुखता देना: | 1.2mm PP Strap Making Machine,240kg PP Strap Making Machine,240kg pp strap making machine |
||

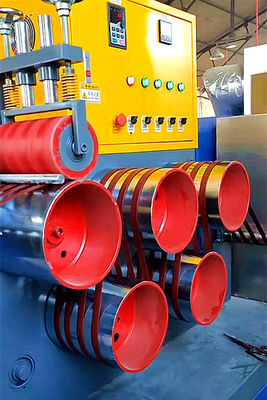

5-19mm Customized Automatic Screen Changer PP Strap Making Machine 4 Extrusion Line 240kgs/H
Parameters of PP Belt Strapping Band Production Line
| 1 | Materials | Polypropylene PP raw material pellets, recycled pellets. |
| 2 | Product | PP strap (1 mould for 4 straps) |
| 3 | Capacity | 200-230kg/h |
| 4 | Total install power | 100kw, (actual power consumption is 50-60%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (36m) ×W (2m) ×H (4m) |
| 9 | Cooling water | ≤20℃,≥0.3Mpa, 5-8Ton/hr |
| 10 | Compressed air | 0.5-0.8Mpa |
| 11 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 12 | Electric components | Schneider |
| 13 | Inverter | INVT |
| 14 | Switches | Fotek |
| 15 | Motor power | GUGAO |
| 16 | Machine frame | 100*100*2.5 mm(GB quadrate pipe) |
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if using raw materials, it will be better and will be more shiny. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc. more industry will use the PP strap to packing the cargoes, it can bear more weight than any other general packing material, like tape, rope etc.
Advantages for PP Making Machine
PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and
drying that save a large number of equipment investment and reduce the production cost by 30%
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
