उत्पाद विवरण:
|
| उत्पाद का प्रकार: | प्रयुक्त पीईटी स्ट्रैपिंग बैंड उत्पादन लाइन/पीपी स्ट्रैपिंग बैंड बनाने की मशीन/पीईटी पैकिंग स्ट्रैप् | कच्चा माल: | पॉलीप्रोपाइलीन पीपी कच्चे माल छर्रों, पुनर्नवीनीकरण छर्रों |
|---|---|---|---|
| पेंच डिजाइन: | वैकल्पिक | जुड़वां पेंच प्रकार: | सह-घूर्णन समानांतर ट्विन-स्क्रू |
| प्रेरित प्रकार: | इलेक्ट्रिक | प्रसंस्करण प्रकार: | बाहर निकालना मशीन |
| स्वचालन: | स्वचालित | आवेदन: | पैकेजिंग पट्टा |
| प्रमुखता देना: | 0.4mm PP Strapping Band Making Machine,135kw PP Strapping Band Making Machine,352kw PET Strapping Band Production Line |
||

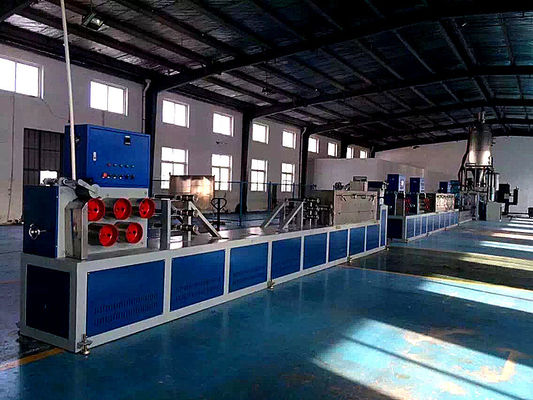

Packaging machinery Single screw PP strapping production line PP strapping equipment with 5-19mm width
Quick Detail Of PP Strap Making Machine
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 200kg/h
Installation size: L38*W2.0*H4.0(m)
Configuration Of PP Strapping Production Line
| NO. | Name | QTY |
| 1 | Color Mixer | 1 set |
| 2 | Vacuum feeder or screw loader feeder (100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it. |
1 set |
| 3 | Hopper dryer | 1 set |
| 4 | SJ single screw extruder | 1 set |
| 5 | High speed Screen exchanger device | 1 set |
| 6 | Molud | 1 set |
| 7 | Water cooling tank | 1 set |
| 8 | The first traction machine- 5 rollers | 1 set |
| 9 | The first Stretch forming oven | 1 set |
| 10 | The Second traction machine- 5 rollers | 1 set |
| 11 | The second Stretch forming oven | 1 set |
| 12 | The Third traction machine- 3 rollers | 1 set |
| 13 | Embossing machine | 1 set |
| 14 | The Winder machine | 1 set |
Working process of PP strapping equipment:
Raw material preparation----Add PP granules into the extruder hopper.
Extrusion molding----PP granules are melted in the extruder and extruded through the mold.
Cooling and shaping----The extruded strapping tape enters the cooling water tank for cooling and shaping.

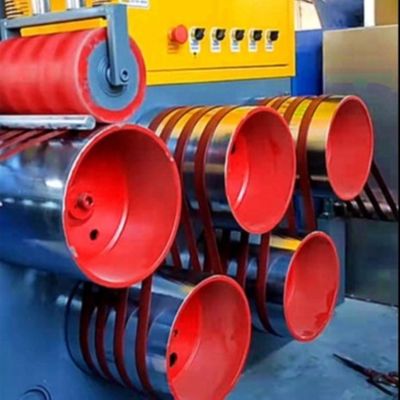

Traction and stretching---- The traction machine pulls the strapping tape, and the stretching machine performs stretching treatment.
Embossed treatment---- The embossing machine embosses the surface of the strapping tape.
Shaping oven---- Heat and shape the PP tape again to achieve consistent specifications.
Reeling and packaging----The reeling machine winds the strapping tape into a roll and puts it into storage after packaging.
Finished PP belt:
FAQ
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
