उत्पाद विवरण:
|
| प्लास्टिक संसाधित: | पालतू | पेंच व्यास (मिमी): | 90 मिमी |
|---|---|---|---|
| उत्पादन क्षमता: | 180-220 किग्रा/एच | गारंटी: | 1 वर्ष |
| एक्सट्रूडेड स्ट्रैप की संख्या: | 2 | आवेदन का दायरा: | ईंट-पत्थर, धातु, स्टील, एल्यूमीनियम, शराब की भठ्ठी |
| स्क्रीन परिवर्तक: | दो-तरफा सिलेंडर/एकल सिलेंडर | मोटाई सीमा: | 0.6-1.2 मिमी |
| चौड़ाई सीमा: | 9-32 मिमी | लागू कच्चे माल: | बोतल परत सामग्री, 100% टूटी हुई सामग्री |
| नियंत्रण प्रणाली: | पीएलसी चीनी/अंग्रेजी नियंत्रण प्रणाली | मोटर शक्ति: | SIMENS |
| पलटनेवाला: | आईएनवीटी | घुमावदार कागज कोर: | ￠406*150मिमी |
| पेंच डिजाइन: | एकल-पेंच | स्विच और अन्य विद्युत: | श्नाइडर |
| शक्ति: | 200 किलोवाट | चलने की शक्ति: | 110-120 किलोवाट |
| प्रमुखता देना: | 90mm Packing Belt Making Machine,180kg Packing Belt Making Machine,90mm PET Strap Extrusion Line |
||

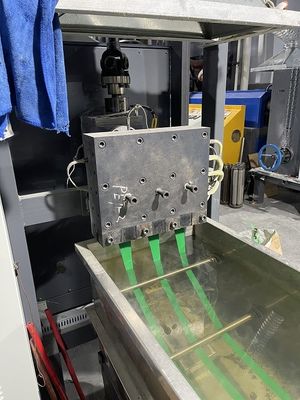

Screw Dia 90mm PET Plastic Packing Belt Making Machine Two Way Cylinder
PET Plastic Packing Belt Double Output Making Machine Two-Way Cylinder

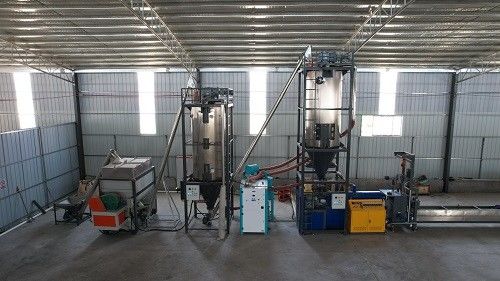

PET Packing Strap Production Line:
PET packing strip, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
Parameters of PET 1 to 2 production machine:
|
Item |
JTPET-90 |
|
Screw design |
Single screw |
|
Straps Qty. |
2 straps |
|
Output/Day |
5.5-6T/24 hours |
|
Screw Dia. |
90mm |
|
Winder Qty. |
2 sets |
|
Material used |
100% Recycled Bottle Flakes/Virgin Material/mixed with |
|
Running power |
110-120kw |
|
Installed power |
200kw |
|
Strap specifications |
Width 9-32mm thickness 0.6-1.2mm |
|
Workshop area |
L (55m) ×W (2m) ×H (7m) |
|
Electric components |
Schneider |
|
Materials |
PET raw material or 100% PET bottle flakes recycled |
Advantages for PET Making Machine:
Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.
Process 100% recycled PP/PET bottle flakes or pellets.
Even plasticization and stable extrusion with PLC automatic control for the full line.
As per different requirements, changing a coating materials for make strap have better and special function. For example, thestrap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
Melt filter with two pistons with air venting design and back flushing.

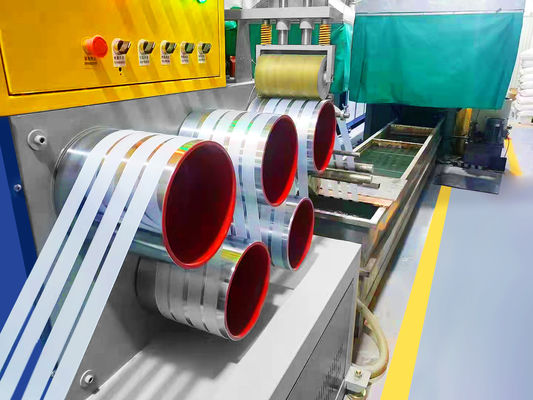

Hengli winding system, unique design parameters, in line with high yield, excellent winding effect, two sides flat and beautiful.

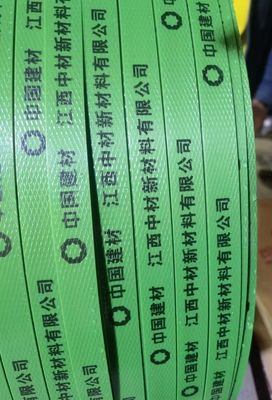

PET strapping finished products:
