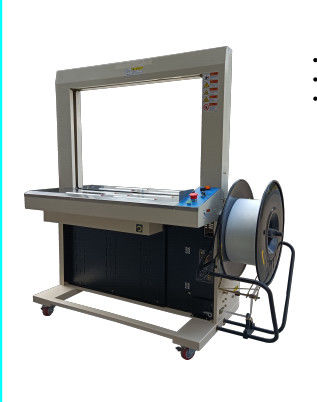

High efficiency Full Automatic Carton Box Case Strapping Machine

High efficiency Full Automatic Carton Box Case Strapping Machine

PRODUCT DESCRIPTION

Features of the automatic strapping machine for PET strap:
1.Easy to use ,lightweight, compact design
2.No fasteners, friction welding , high sealing efficiency
3.High degree of automation, easy to operate
4.Suitable for different sizes and shapes
5.Machine frame and components adopt high strength alloy material and engineering plastics
6.High safety performance

• Hinged table top
• Mechanical tension control
• Motor shut off for energy saving
• Easy operation, less maintenance
• Reliable PCB and control components

How to use semi-automatic strapping machine:

1. Power switch: Turn ON to start the machine, and OFF to stop the machine.

2. Power indicator light (POWER): Turn on the power switch, the light is on.

3. Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.

4. Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.

5. Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. 6. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.

7. Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.

8. Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.
