उत्पाद विवरण:
|
| प्लास्टिक संसाधित: | पालतू | पेंच व्यास (मिमी): | 125 मिमी |
|---|---|---|---|
| उत्पादन क्षमता: | 420-450 किग्रा/एच | गारंटी: | 1 वर्ष |
| एक्सट्रूडेड स्ट्रैप की संख्या: | 4 | आवेदन का दायरा: | ईंट-पत्थर, धातु, स्टील, एल्यूमीनियम, शराब की भठ्ठी |
| स्क्रीन फिल्टर: | डबल सिलेंडर / सिंगल सिलेंडर | मोटाई सीमा: | 0.4-1.2मिमी |
| चौड़ाई सीमा: | 9-32 मिमी | लागू कच्चे माल: | बोतल परत सामग्री, 100% टूटी हुई सामग्री |
| नियंत्रण प्रणाली: | पीएलसी चीनी/अंग्रेजी नियंत्रण प्रणाली | हीटर शक्ति: | 220V, 50HZ, 6 किलोवाट/सेट |
| मोटर: | SIMENS | पलटनेवाला: | आईएनवीटी |
| पूर्व-सुखाने वाली टावर क्षमता: | 5000L | पेंच डिजाइन: | एकल पेंच |
| प्रमुखता देना: | Manual PET Strap Making Machine,Siemen Schneider PET Strap Making Machine |
||

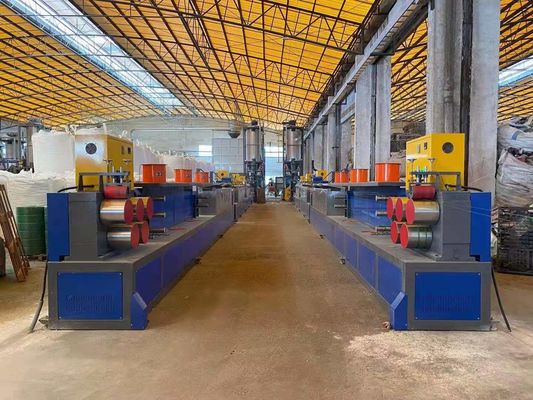

Used For Machine Or Manual Use PET Strap Making Machine With Schneider GUGAO Electric Components

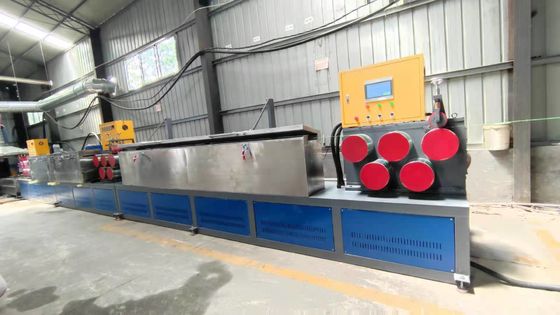

Product Description of PET strap making extruder machine
• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.
• Special designed technology, make sure the strip forming rapidly
• Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.
Technical Parameters of PET 1 to 4 production machine
| Item | JTPET-125 |
| Screw design | Single screw |
| Straps Qty. | 4 straps |
| Output/Day | 10-10.5T/24 hours |
| Screw Dia. | 125mm |
| Winder Qty. | 4 sets |
| Material used | PET raw material or 100% PET bottle flakes recycled |
| Running power | 180-190kw |
| Installed power | 300kw |
| Strap specifications | Width 9-32mm Thickness 0.4-1.2mm |
| Workshop area | L (58m) ×W (2m) ×H (8m) |
| Electric components | Schneider |
Production Process of PET Strap Production Machine
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Pre-heating → The First Drawing and Stretching →The Second Drawing and Stretching → Embossing →Hot Forming → cooling→ Winding
PET strap making line configuration reference
|
Item |
Name |
Quantity |
|
1 |
Dehumidification and drying system |
1 set |
|
2 |
Oil and dust filter |
1 set |
|
3 |
Horizontal mixer(5000L) |
1 set |
|
4 |
Pre-drying tower(5000L) |
1 set |
|
5 |
Screw Feeder |
3 set |
|
6 |
Barrel(5000L) |
1 set |
|
7 |
¢125mm Extruding Machine |
1 set |
|
8 |
Melt pump |
1 set |
|
9 |
Single cylinder filter |
1 set |
|
10 |
PET Mould output 4straps |
1 set |
|
11 |
Cooling water tank |
1 set |
|
12 |
Stretching oven |
1 set |
|
13 |
Five roller gearbox |
3 set |
|
14 |
PLC electrical control system |
1 set |
|
15 |
Forming oven |
1 set |
|
16 |

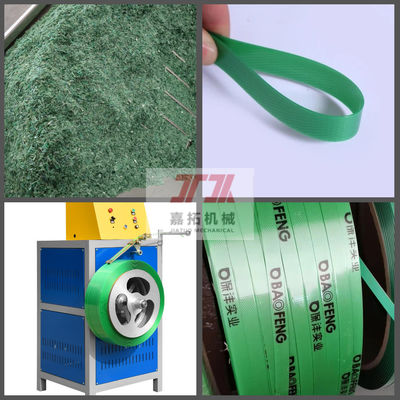

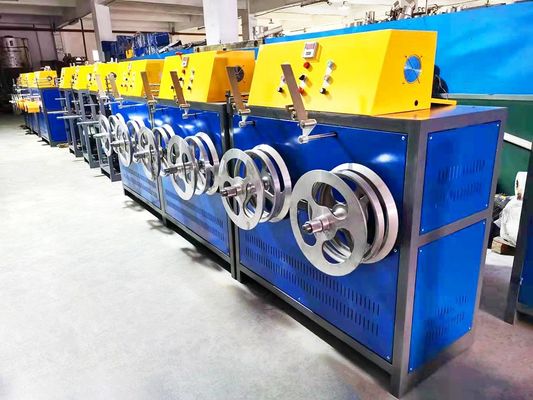

Double disk winder |
4 set |

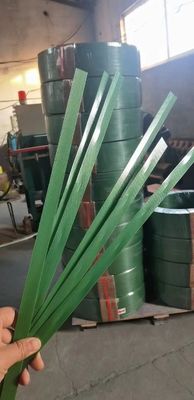

Application of PET strap
PET PP PE strap , known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline,have been widely used in the steel industry,chemical fiber industry,aluminum ingots,paper,brick kiln industry,screw industry,tobacco industry,electronics,textiles and wood,etc;is replaced by a new high-strength steel strapping,is the world's most widely used for steel products.
