उत्पाद विवरण:
|
| वीडियो आउटगोइंग-निरीक्षण: | प्रदान किया | पट्टा तनाव: | एडजस्टेबल |
|---|---|---|---|
| नियंत्रण प्रणाली: | पीएलसी नियंत्रण प्रणाली | मोटर: | 37 किलोवाट (गुगाओ) |
| वाइन्डर: | डबल स्टेशन वाइंडर | पट्टा कोर प्रकार: | कागज/प्लास्टिक |
| गारंटी: | 1 वर्ष | सामग्री: | पीपी पुनर्नवीनीकरण सामग्री/नया कच्चा माल |
| मोटाई: | 0.4-1.2मिमी | चौड़ाई: | 5-19मिमी |
| स्क्रीन परिवर्तक: | स्वचालित/नियमावली | पेंच: | सिंगल स्क्रू/डबल स्क्रू |
| प्रमुखता देना: | Energy Efficiency PP Strap Extruder,Automated Operation PP Strap Extruder,5-19mm PP Strap Extruder |
||

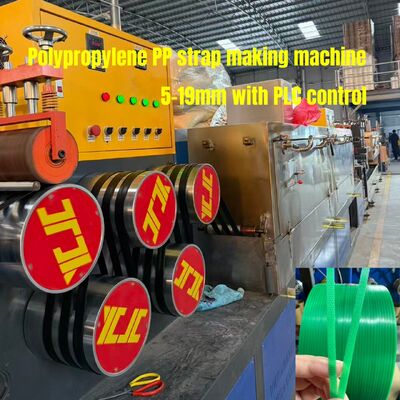

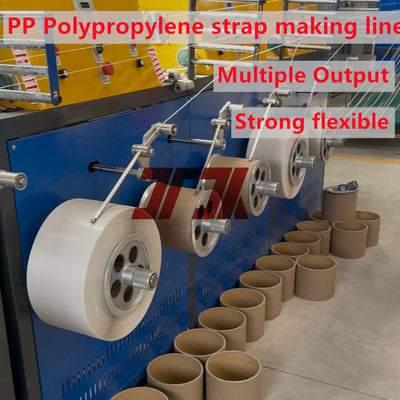

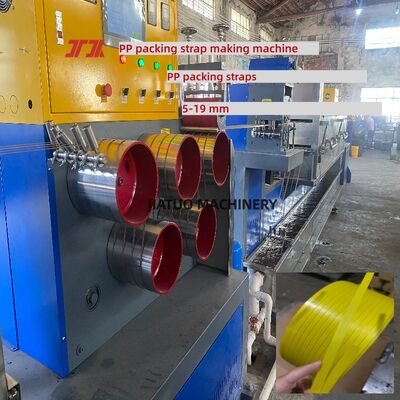

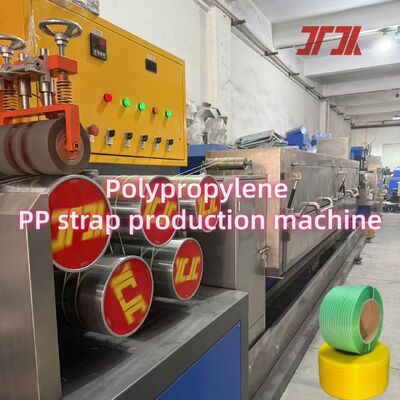

Energy Efficiency PP Packing Strap Extruder Production Line with Automated Operation
Technical Parameters of PP strap making machine
| 1 | Materials | Polypropylene PP raw material pellets, recycled pellets. |

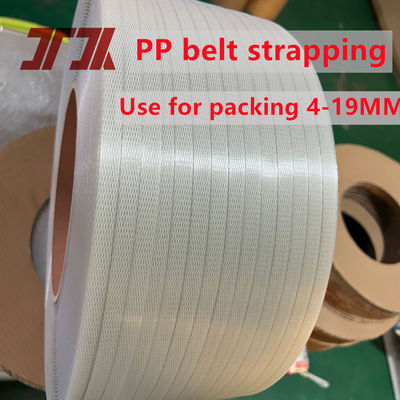

| 2 | Product | PP strap (1 mould for 2 straps) |
| 3 | Capacity | 100-120kg/h |
| 4 | Total install power | 80kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (30m) ×W (2m) ×H (4m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Motor power | GUGAO |
Process flow of PP packing belt production line
Feeding → stirring → pre-drying → melting and measuring extrusion → embryo (belt embryo) cooling and forming → oven preheating → primary stretching → secondary stretching → embossening → oven tempering and setting → cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.
1. High Production Capacity
These machines are designed for high-speed production, capable of producing large quantities of PP strapping in a short time.
2. Automated Operation
Modern PP strapping machines are fully automated, reducing the need for manual intervention and ensuring consistent quality.
3. Precision Extrusion
The machines use advanced extrusion technology to produce strapping with uniform thickness, width, and tensile strength.
4. Customizable Width and Thickness
PP strapping machines can be adjusted to produce strapping bands of various widths and thicknesses to meet specific customer requirements.
5. Material Efficiency
These machines are designed to minimize material waste, ensuring efficient use of raw materials and reducing production costs.
1. The packing belt used for binding cement brick factory has high tensile strength and high temperature and cold resistance.
2. The packing belt used in aluminum steel strapping factory has high tensile strength, high temperature and cold resistance, and is not easy to break.
3. Chemical fiber packing belt, not easy to break, Packing belt for heavier products,pulling force up to 1000KG.
After Service
1.Free installation and debugging
2.Provide all kinds of product formula, technology and chemical material manufacturer information
3.According to the customer's requirements, provide technical guidance
4.Technical training for employees of customers
5. Responsible for maintenance service, door to door service if necessary.
