उत्पाद विवरण:
|
| पट्टा गति: | >250 मी/मिनट | पेंच व्यास (मिमी): | 100 मिमी |
|---|---|---|---|
| पट्टा तनाव: | एडजस्टेबल | लागू कच्चे माल: | पुनर्नवीनीकरण सामग्री और पॉलीप्रोपाइलीन |
| प्रमुख विक्रय बिंदु: | जर्मनी जापान प्रौद्योगिकी का नेतृत्व करें | पट्टा मोटाई: | 0.4-1.2मिमी |
| वीडियो आउटगोइंग-निरीक्षण: | प्रदान किया | प्लास्टिक संसाधित: | पीपी |
| प्रमुखता देना: | PP strap making machine with Schneider switch,plastic extruder for PP strap production,non-stop screen changer PP strap machine |
||

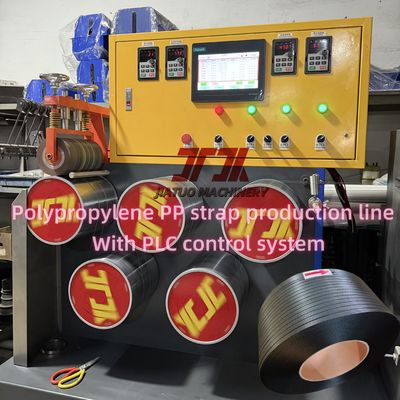

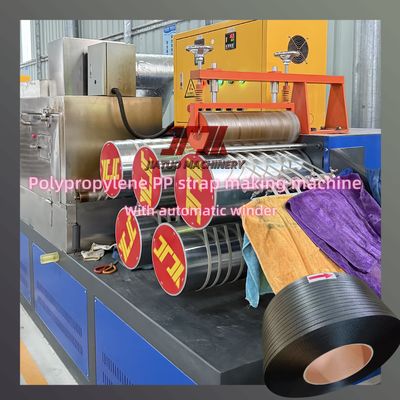

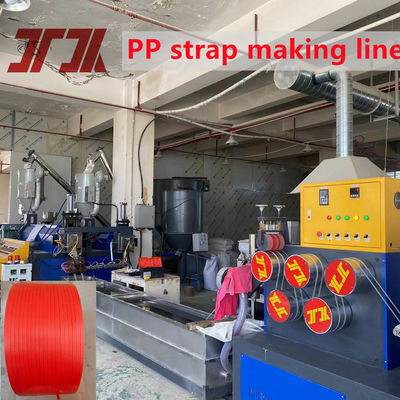

Plastic Extruder 5-19mm PP Strap Production Line with Schneider Switch and non-stop screen changer
Main technical parameters of PP strap production machine
| Type | JTPP-90 | JTPP-100 | JTPP-110 | JTPP-125 | JTPP-135 | JTPP-90/65 | JTPP110/75 |
| Strap of number | 2 | 3 | 4 | 6 | 8 |
2 Sandwich belt |
4 Sandwich belt |
| width | 5-19mm | 5-19mm | 5-19mm | 5-19mm | 5-19mm | 5-19mm | 5-19mm |
| Thickness | 0.4-1.2mm | ||||||
| Reducer mode | 200 | 200 | 225 | 250 | 280 | 200/173 | 225/173 |
| Screen changer | Automatic/ Manual | ||||||
| Production capacity | 80-120kg/H | 180-200kg/H | 220-250kg/H | 350-370kg/H | 460-500kg/H | 80-120kg/H | 180-200kg/H |
| Screw type | Single screw | Double screw | |||||
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening →⑩ oven tempering and setting →⑪ cooling →⑫ finished product winding
Remarks: If there is a printing machine after the second stretching first printed and then embossed in item 8.
Machine advantages of PP strap making machine
1. This production line is specially designed for manufacturing PP straps, capable of producing 2/3/4/6/8 straps simultaneously (depending on your output requirements), which reduces energy consumption by 20%–30%.
2. Equipped with a PLC touch-screen controller supporting both Chinese and English, the system is safe and user-friendly. It maintains optimal operational status and stores previous production parameters to ensure consistent strap quality.
3. The stretching oven features a highly efficient, fully stainless steel heating tube for fast heating and long-lasting performance.
4. All electrical components use renowned brands to ensure operational safety and provide an extended warranty.
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
