उत्पाद विवरण:
|
| उत्पाद का प्रकार: | पीईटी स्ट्रैप बनाने की मशीन | कच्चा माल: | पीईटी फ्लेक्स या 100% पुनर्नवीनीकरण सामग्री |
|---|---|---|---|
| पीईटी मोटाई रेंज: | 0.6-12मिमी | पालतू जानवर का पट्टा चौड़ाई: | 9-32 मिमी |
| क्षमता: | 200 किग्रा/घंटा | प्रेरित प्रकार: | इलेक्ट्रिक |
| वोल्टेज: | ग्राहक के कारखाने के अनुसार | मोटर: | गुगाओ |
| उत्पाद का रंग: | हरा/गुलाबी/पीला/काला | आवेदन: | पैकेज्ड सामग्री |
| बिक्री के बाद सेवा प्रदान की गई: | वीडियो तकनीकी सहायता, ऑनलाइन सहायता | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | PET plastic strapping machine,PET strap extrusion line with warranty,five-roller traction strapping equipment |
||

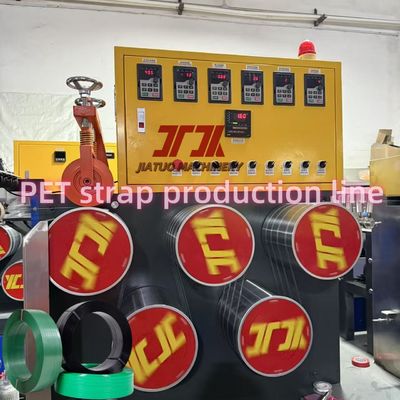

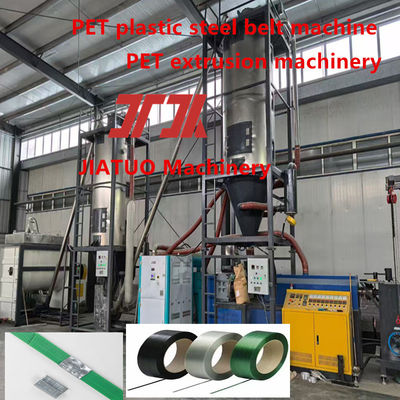

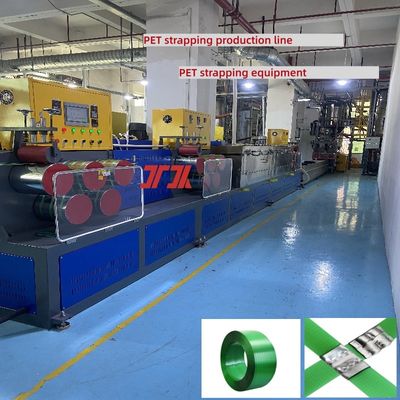

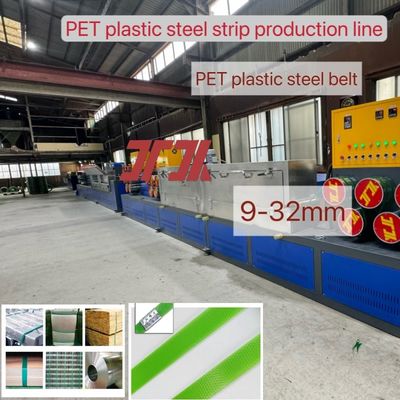

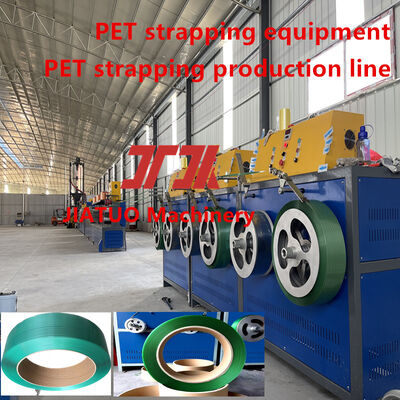

PET plastic strapping production equipment 9-25mm PET PET straps Making Machine with five-roller traction system
PRODUCT DESCRIPTION OF PET PLASTIC STRAPPING PRUDUCTION EQUIMENT:
PET plastic strapping (also known as PET strapping) production equipment is specialized for producing high-strength, environmentally friendly PET plastic strapping. Its key features include:
1. Efficient and Automated Production
Continuous Production------ PET equipment utilizes an integrated process for extrusion, cooling, stretching, shaping, and winding, resulting in a high degree of automation and high production efficiency, making it suitable for large-scale production.
Intelligent Control------- A PLC (Programmable Logic Controller) and touchscreen human-machine interface enable precise control of parameters (such as temperature, tension, and speed), minimizing manual intervention.
Quick Mold Change-------- Some equipment supports quick mold changes, enabling flexible production of plastic strapping in various widths (e.g., 9mm--25mm) and thicknesses. This is convenient and hassle-free.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Core Components of PET Plastic Steel Strip Equipment:
1. Five-Roller Stretching System
Stretching Unit: Equipped with 3-5 sets of traction rollers, utilising silicone or chrome-plated rollers to prevent strip scratching; adjustable stretching speed range of 5-20m/min accommodates production requirements for plastic steel strips of varying thicknesses (0.4-1.2mm).
2. Five-Roller Forming System
Temperature Control System: Utilises a PLC control system with touchscreen operation, achieving ±1℃ precision across the entire line. Real-time temperature curves for each section are displayed, with fault alarm functionality (e.g., temperature anomalies, motor overload) enabling prompt operator intervention.
Applications of finished PET plastic steel strapping:
1. Glass
2. Steel
3. Brickworks
4. Marble
5. Cotton
6. Aluminium and other materials.
FAQ
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
