उत्पाद विवरण:
|
| कच्चा माल: | पीईटी बोतल परत सामग्री, 100% टूटी हुई सामग्री | वोल्टेज: | 380V/50HZ (अनुकूलित) |
|---|---|---|---|
| नियंत्रण प्रणाली: | पीएलसी कंप्यूटर टच स्क्रीन | घुमावदार विधि: | मैनुअल/स्वचालित |
| शक्ति: | 55 किलोवाट | वज़न: | 18000 किग्रा |
| ठोस-राज्य रिले: | ताइवान यांगमिंग | मीटरिंग पंप: | 100 सी.सी. |
| स्क्रीन परिवर्तक: | रासायनिक फाइबर फ़िल्टर | नाम: | पीईटी स्ट्रैपिंग मशीन |
| प्रमुखता देना: | high-speed PET strap making machine,automatic PP PET strapping machine,PET strap winding machine |
||

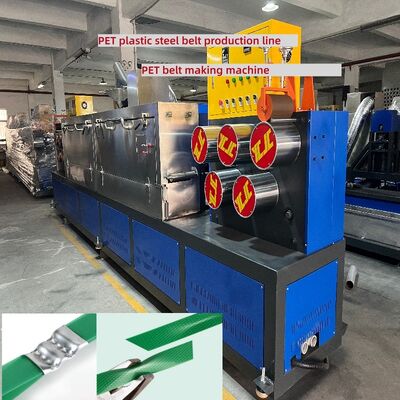

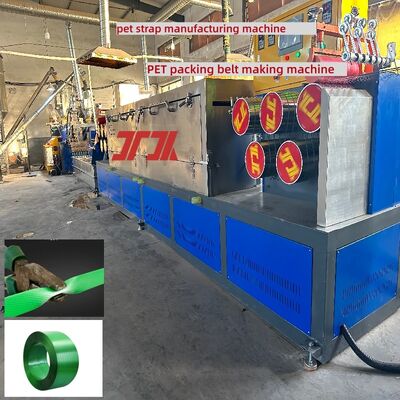

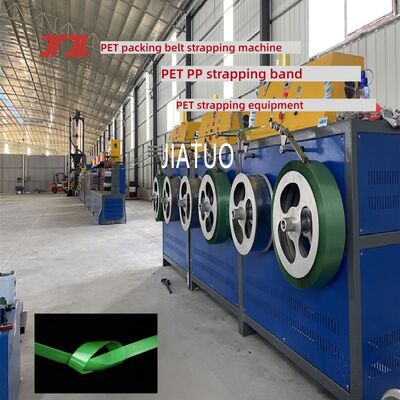

pet strap manufacturing machine / PET strap making machine
pet strap manufacturing machine is a high speed and environmentally friendly extruder, which can produce PET belts with width 9-32mm, with the following advantages:
1. Bottle flakes----- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials------ finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials

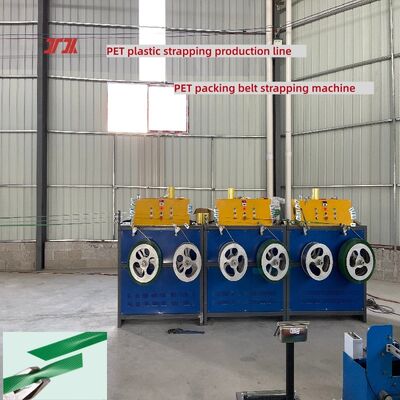

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Core Components of PET Plastic Steel Strip Equipment:
1. Five-Roller Stretching System
Stretching Unit: Equipped with 3-5 sets of traction rollers, utilising silicone or chrome-plated rollers to prevent strip scratching; adjustable stretching speed range of 5-20m/min accommodates production requirements for plastic steel strips of varying thicknesses (0.4-1.2mm).

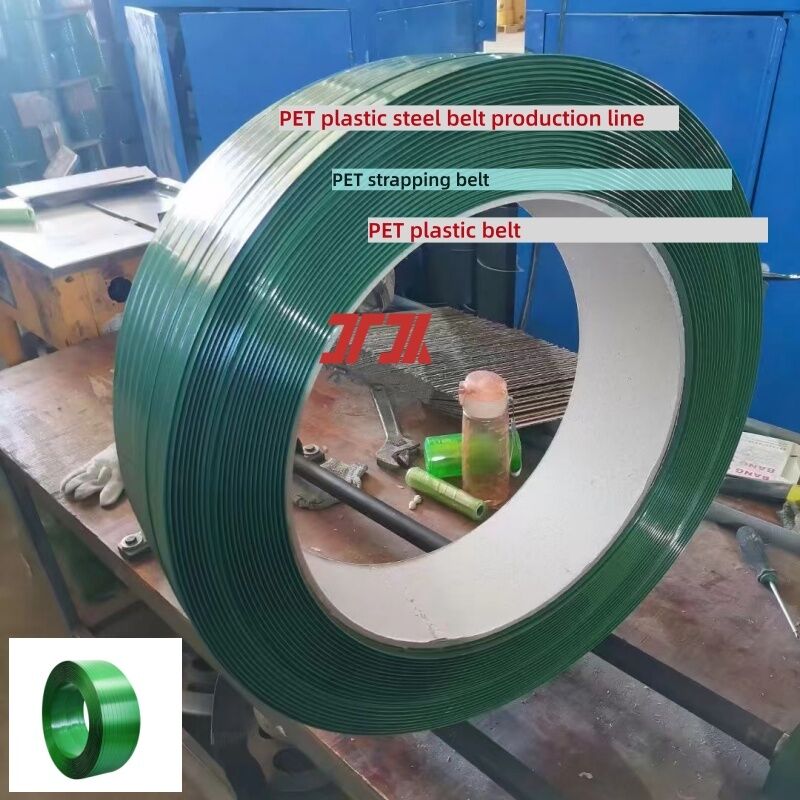

PET plastic steel belt
PET Plastic Strapping/PET Binding Strap
PET: Polyethylene terephthalate, abbreviated as PET. PET is a green or black, highly crystalline polymer with a smooth and glossy surface
.Features:
Elongation ------ PET plastic steel belt is a packaging material with good tensile strength and excellent welding performance.
Elongation ------ It has a good tension retention ability. It will not relax for a long time after being packed, thus ensuring that the goods have excellent impact resistance during long-distance transportation.
FQA:
Q: What is the voltage of the PET strap making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strap making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pPET strap making machine?
A: 9-32mm
Q: Can the PET strap making machine be customized?
A: Customization supported
Q: Where does the PET strap making machine come from?
A: China.
Q: What are the certifications for the PET strap making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strap making machine?
A: 1 set
Q: What is the weight of the PET strap making machine?
20T, 40GP container * 3PCS
