150m/min Line Speed PET Strapping Band Making Machine With Automatic Winder

बड़ी छवि : 150m/min Line Speed PET Strapping Band Making Machine With Automatic Winder

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	JIATUO CHINA
प्रमाणन:	ISO/ CE
मॉडल संख्या:	जेटीपीईटी-110
दस्तावेज़:	PET strap making machine-A.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	बातचीत योग्य
पैकेजिंग विवरण:	प्लास्टिक की फिल्म
प्रसव के समय:	50-60 दिन
भुगतान शर्तें:	एल/सी,टी/टी
आपूर्ति की क्षमता:	20 सेट/महीना

संपर्क करें

150m/min Line Speed PET Strapping Band Making Machine With Automatic Winder

वर्णन

प्लास्टिक संसाधित:	पालतू	पेंच व्यास (मिमी):	110 मिमी
उत्पादन क्षमता:	225-250kgs/H को अनुकूलित किया जा सकता है	गारंटी:	1 वर्ष
एक्सट्रूडेड स्ट्रैप की संख्या:	3	आवेदन का दायरा:	ईंट-पत्थर, धातु, स्टील, एल्यूमीनियम, शराब की भठ्ठी
स्क्रीन परिवर्तक:	डबल सिलेंडर / सिंगल सिलेंडर	मोटाई सीमा:	0.4-1.2मिमी
चौड़ाई सीमा:	9-32 मिमी	लागू कच्चे माल:	बोतल परत सामग्री, 100% टूटी हुई सामग्री
प्रमुखता देना:	PET strapping band machine with automatic winder , high-speed PET strap making machine , 150m/min PET strapping production line

150m/min Line Speed PET Strapping Band Making Machine With Automatic Winder

The process fiow of PET strap making machine as below

Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder

Parameters of PET strap production machine

1	Materials	PET CRUSHED MATETIAL / bottle flakes material /virgin material
2	Product	PET strap (1 mould for 2straps)
3	Capacity	200-225kg/H
4	Total install power	100kw, (actual power consumption is 40-50%)
5	Strap width	9mm-32 mm
6	Thickness	0.4 mm-1.2 mm
7	Manpower	2person/shift
8	Workshop required	L (50m) ×W (4m) ×H (8m)
9	Power source	380V, 50Hz, 3Phase (according to customer requirement)
10	Electric components	Schneider
11	Inverter	INVT
12	Switches	Fotek
13	Motor power	GUGAO

Part of JIATUO PET strap making machine

1. Single screw extruder with automatic mixing and feeding system

(1) Optimized screw and new slotted sleeve, high plasticizing rate, uniform melt, continuous and stable production.(2) High performance gear box reducer, high torque, long life, low noise.
(3) Can uses 100% recycled bottle flakes.
(4) Equipped with automatic proportioning, metering and mixing system for raw materials and additives,etc.

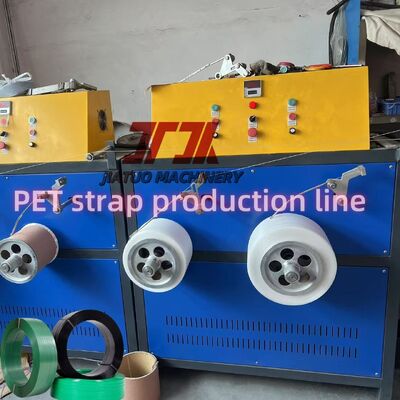

2. Winding machine
(1) Semi-automatic winding machine
(2) Fully-automatic winding machine

Application of PET strapping

PET strapping (also known as plastic steel strapping) is an ideal alternative to traditional steel strapping and PP strapping, thanks to its high strength, excellent toughness, corrosion resistance, and lightweight properties, as well as its eco-friendly advantage of recyclability. It is widely used in various scenarios such as industrial packaging and logistics bundling, with specific applications as follows:

Building Materials Industry
It is used for bundling heavy building materials like cement, gypsum boards, ceramic tiles, stone materials, aluminum profiles, and steel products. Its high tensile strength and breakage resistance can effectively prevent building materials from scattering and deforming during long-distance transportation. Unlike steel strapping, it will not rust and contaminate products.
Metallurgy and Metal Processing Industry
It is applied to bundle heavy metal products including steel pipes, steel plates, steel bars, and metal castings. PET strapping has better ductility and cushioning performance than steel strapping, which can avoid scratching the metal surface. Meanwhile, it can bear the weight of metal materials, meeting the stringent requirements of long-distance transportation by sea and land.
Glass Industry
It is used for bundling fragile items such as raw glass sheets and glass products. When matched with special packing buckles or hot-melt joints, it can realize firm and uniform stress bundling, reducing the breakage of glass caused by jolting and extrusion during handling and transportation, and improving packaging safety.
Food and Beverage Industry
It is suitable for unitized packaging of cartons, such as palletizing and bundling of whole cases of mineral water, beverages, beer, and dairy products, as well as bundling large packages of food like rice, flour, grain and oil. PET strapping is non-toxic and odorless, compliant with food contact safety standards. Moreover, it is moisture-proof and mildew-resistant, and will not contaminate food.

FAQ

1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;

2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
