उत्पाद विवरण:
|
| प्लास्टिक संसाधित: | पालतू | पेंच व्यास (मिमी): | 110 मिमी |
|---|---|---|---|
| उत्पादन क्षमता: | 225-250kgs/H को अनुकूलित किया जा सकता है | गारंटी: | 1 वर्ष |
| एक्सट्रूडेड स्ट्रैप की संख्या: | 3 | आवेदन का दायरा: | ईंट-पत्थर, धातु, स्टील, एल्यूमीनियम, शराब की भठ्ठी |
| स्क्रीन परिवर्तक: | डबल सिलेंडर / सिंगल सिलेंडर | मोटाई सीमा: | 0.4-1.2मिमी |
| चौड़ाई सीमा: | 9-32 मिमी | लागू कच्चे माल: | बोतल परत सामग्री, 100% टूटी हुई सामग्री |
| प्रमुखता देना: | PET steel packing strap machine,high-capacity PET strap making machine,PET strap machine with dehumidification barrel |
||

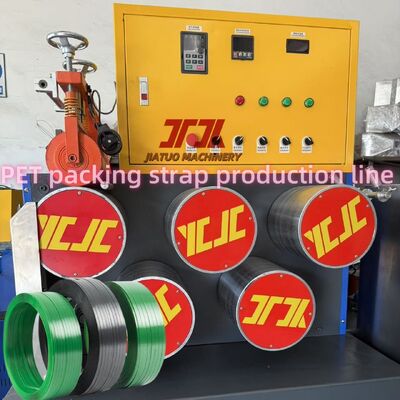

220-250KG/H PET Steel Packing Strap Making Machine With 4000L Dehumidification Barrel
What advantage of JIATUO PET strap making machine?

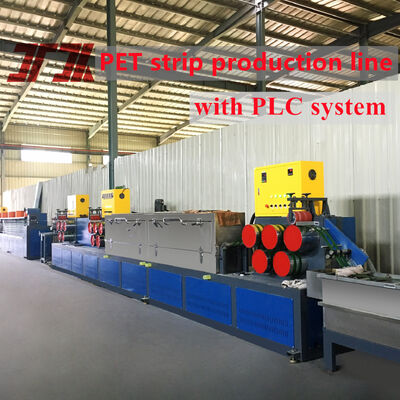

1. The entire production line is controlled by a PLC system, achieving uniform plasticization and stable extrusion.
2. The screen changer uses a chemical fiber filter with a filtration area of up to 4.5 square meters, allowing for 5-6 days without screen replacement, greatly improving production efficiency.
3. Output: 2/4/6/8/10 straps , customizable according to customer requirements.
Parameters of JIATUO PET strap production machine
| Model | Capcity (kg/h) | Strap Size | Power(kw) | Manpower |
| JT-PET90 | 220-250KG/H | 9-32mm | 85 | 1-2 |
| JT-PET110 | 300-330KG/H | 9-32mm | 100 | 1-2 |
| JT-PET125 | 400-450KG/H | 9-32mm | 110 | 1-2 |
| JT-PET130 | 480-500KG/H | 9-32mm | 200 | 1-2 |
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Tip: if you need printing on the strapping, setting printing machine before embossing.
Application of PET strapping
FAQ about JIATUO PET strap making machine
For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
